MTL5523 MTL Safety Barrier Isolators

Brand Name : MTL

Model Number : MTL5523

Place of Origin : England

MOQ : 1

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500pcs/month

Delivery Time : 3 working days

Packaging Details : original package

Condition : original brand new

Warranty : one year

Shipping way : DHL FedEx express

Application : Automation Industries, oil, gas, chemical industries

Certificate : CE ISO TUV

Contact Now

MTL5523 MTL Safety Barrier Isolators

Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver featuring 1-channel digital output, designed for hazardous locations with SIL2/SIL3 safety integrity levels. Provides reliable operation with comprehensive line fault detection and LED status indication.

Product Specifications

Product Name	Eaton Crouse-Hinds series MTL5500 solenoid/alarm driver
Catalog Number	MTL5523 - FSM ASSESSED
EAN	3066227675829
Product Type	Solenoid/alarm driver
Dimensions (L x H x W)	109.8 mm × 118.8 mm × 15.8 mm
Product Weight	150 g

Electrical Characteristics

Signal Type	Digital output
Number of Channels	1
Current	50 mA
Power Supply	20-35 Vdc
Current Consumption	100mA at 24 Vdc
Power Dissipation	1.2W with typical solenoid valve, 2.0W worst case
Response Time	Output within 10% of final value within 100ms

Safety & Environmental Ratings

Area Classification	Hazardous/Classified Locations
Type	IIC
IECEx/ATEX Hazardous Rating	Zone 0
Safety Integrity Level	SIL2 and SIL3 according to IEC61508
Operating Temperature	-20 °C to 60 °C
Storage Temperature	-40 °C to 80 °C
Humidity	5-95% relative humidity

Key Features

Line Fault Detection: Open or short circuit in field cabling de-energises solid state line fault signal
LED Status Indication: Green (power), Yellow (status), Red (LFD)
Galvanic Isolation: 250V rms between safe-area circuits and power supply
Terminal Capacity: Accepts conductors up to 2.5mm² stranded or single-core
Mounting Method: T-section 35mm DIN rail
EMC Compliance: EN61326
Ripple: <0.5% of maximum output, peak-to-peak

Product Tags:

MTL safety barrier isolators

intrinsic safety barrier isolators

MTL5523 safety isolators

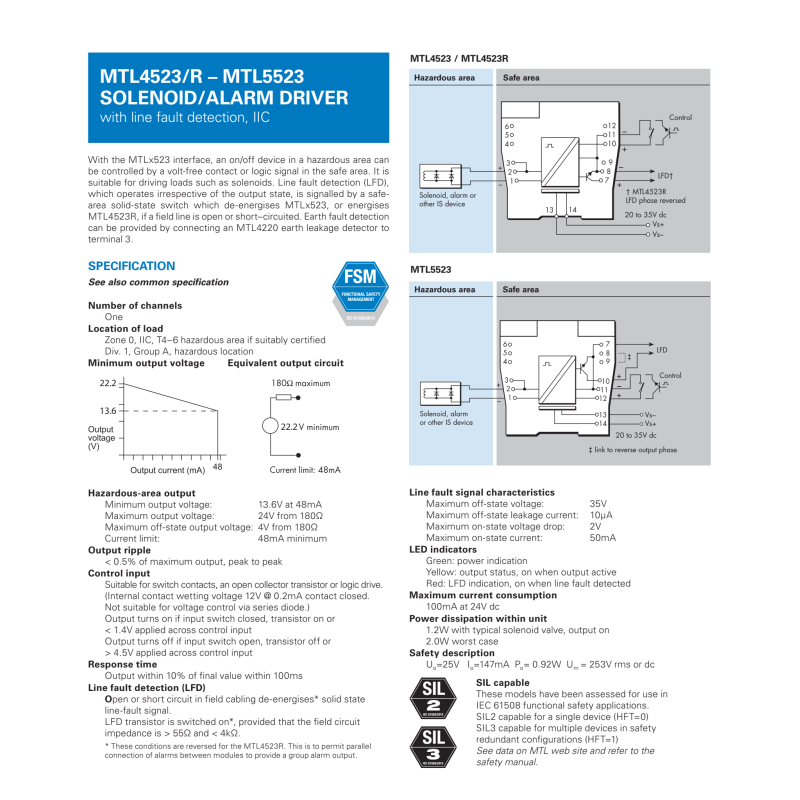

MTL5523 MTL Safety Barrier Isolators Images
