PEPPERL+FUCHS Isolated Barrier Switch Amplifier KCD2-SR-Ex1.LB

  • 1
  • 2
  • 3

Brand Name : PEPPERL+FUCHS

Model Number : KCD2-SR-Ex1.LB

Place of Origin : Singapore

MOQ : 1

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500pcs/month

Delivery Time : 3 working days

Packaging Details : original package

Condition : original brand new

Warranty : one year

Shipping way : DHL FedEx express

Application : Automation Industries, oil, gas, chemical industries

Certificate : CE ISO TUV

Contact Now

PEPPERL+FUCHS Isolated Barrier Switch Amplifier KCD2-SR-Ex1.LB
Product Overview
The PEPPERL+FUCHS KCD2-SR-Ex1.LB is a 1-channel isolated barrier switch amplifier designed for intrinsic safety applications in industrial environments. This compact device ensures reliable signal transmission from hazardous to non-hazardous areas while meeting stringent safety standards.
Key Specifications
Channels 1-channel isolated barrier
Power Supply 24 V DC (Power Rail)
Input Types Dry contact or NAMUR inputs
Output Configuration Relay contact output with fault relay contact output
Housing Width 12.5 mm
Safety Rating Up to SIL 2 (SC 3) according to IEC/EN 61508
Core Features
Signal splitting capability (1 input and 2 outputs)
Integrated line fault detection (LFD)
Compact design for space-critical applications
Low heat dissipation
Operational mode reversal via switches
LED fault indication according to NAMUR NE 44
Collective error message when operated via Power Rail
Functional Operation
This isolated barrier transfers digital signals from NAMUR sensors or dry contacts located in hazardous areas to safe non-hazardous areas. The proximity sensor or mechanical contact controls the relay contact output, with the device changing state when the input signal changes state.
During fault conditions, the relay reverts to its de-energized state and LEDs indicate the fault according to NAMUR NE 44 standards. Line fault detection can be switched off via configuration switches.
Application Benefits
Ideal for detecting positions, end stops, and switching states in space-critical industrial applications. The compact housing design and efficient operation make it suitable for high-density installations while maintaining safety compliance.

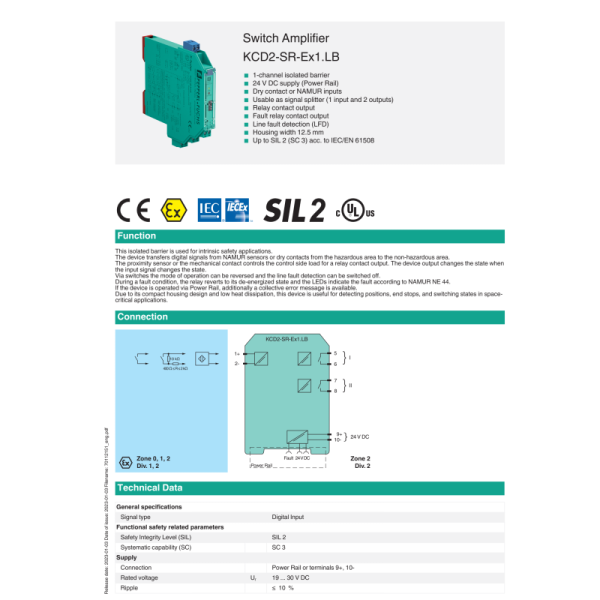

PEPPERL+FUCHS Isolated Barrier Switch Amplifier KCD2-SR-Ex1.LB PEPPERL+FUCHS Isolated Barrier Switch Amplifier KCD2-SR-Ex1.LB
