MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

Brand Name : MTL

Model Number : MTL5561

Place of Origin : England

MOQ : 1

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 500pcs/month

Delivery Time : 3 working days

Packaging Details : original package

Condition : original brand new

Warranty : one year

Shipping way : DHL FedEx express

Application : Automation Industries, oil, gas, chemical industries

Certificate : CE ISO TUV

Contact Now

MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface
Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface featuring 2-channel fully floating design, 20-35 Vdc power supply, and loop-powered operation. Provides reliable signal isolation for fire and smoke detection systems in hazardous locations with reverse polarity protection.
Product Overview
Product Name Eaton Crouse-Hinds series MTL5500 fire and smoke detector interface
Catalog Number MTL5561
EAN 3066227675809
Product Dimensions 109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight 150 g
Global Catalog MTL5561
Product Type Fire and smoke detector interface
Technical Specifications
Type
Loop-powered
Area Classification
Hazardous/Classified Locations
Standards Compliance
IECEx/ATEX, IEC
Hazardous Rating
Zone 0
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 80°C
Humidity
5-95% relative humidity
Signal Type
Fire and smoke
Response Time
Settles to within 5% of final value within 1.5ms
Number of Channels
2, fully floating
Terminal Capacity
Accepts conductors up to 2.5mm² stranded or single-core
Mounting Method
T-section 35mm DIN rail
EMC Compliance
EN61326
Safety Integrity Level
SIL2 according to IEC61508
Systematic Capability
Input circuit protected against reverse polarity
Electrical Connection
Crimp ferrules
Power Supply
20-35 Vdc
Current Range
1-40mA
Maximum Input Voltage
6-30 Vdc
Maximum Output Voltage
28V from 300Ω
Galvanic Isolation
250V rms between safe-area circuits and power supply
Power Dissipation
0.7W max at 24V with 40mA signal
0.9W max at 30V with 40mA signal
Transfer Accuracy
Better than 400μA
Temperature Drift
<4μA/°C (0°C to 60°C)
<15μA/°C (-20°C to 0°C)
MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface

Product Tags:

MTL isolator barrier fire detector



intrinsic safety barrier smoke detector



MTL5561 detector interface isolator


Buy cheap MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface product

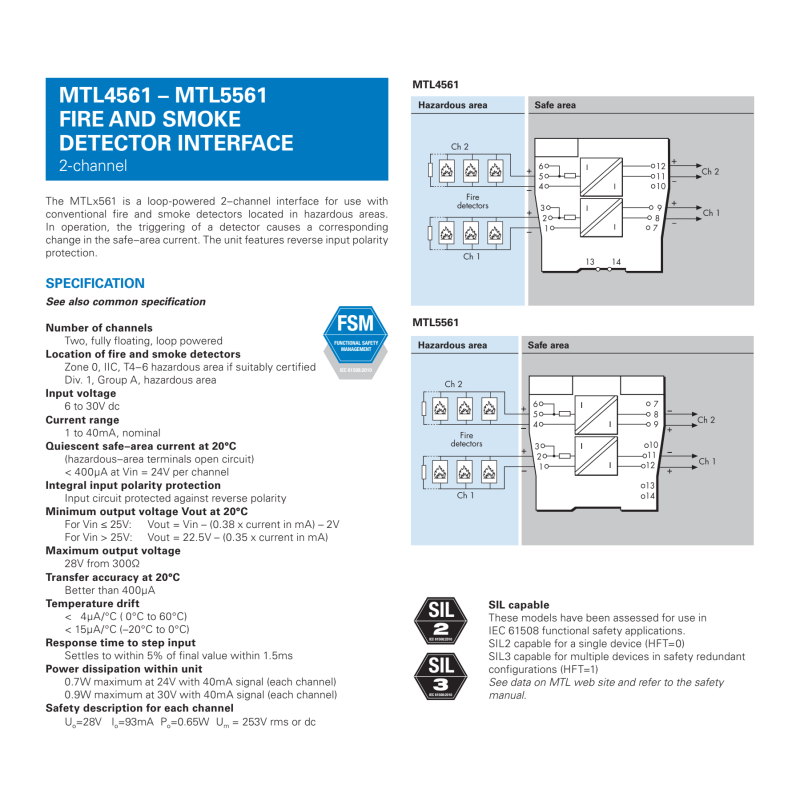

MTL5561 MTL Isolator Barrier Fire and Smoke Detector Interface Images
